Bedrocks in the city that never sleeps

This past weekend I made the short trip from Washington DC up to New York. I went to visit friends and to spend some time enjoying the city itself. But as I sat on the bus and departed New York on Sunday evening there were tears in my eyes. You see, for the past three and a half years while my body has been based here in DC, my heart has lain firmly in the grasp of Manhattan. As it has since the first time I visited New York back in the summer of 2008. On that trip I was fortunate enough to stay in my friend's south-facing Harlem high-rise apartment, which had this for a view:

View south from Harlem.

On my first evening in the city we made a short foray into the Bronx and relaxed on a rooftop with some delicious mojitos. My love affair with New York City had truly begun. Since that week, it has been my ambition—sometimes a nagging one at the back of my mind and sometimes the overriding purpose of my day—to live and work in the crazy confines of the amazing metropolis.

In the next few weeks, however, I will be moving back across the Atlantic Ocean to London, my home. As much as I am looking forward to living again in my first city-love and to starting the next chapter of my life, I am sad that I will no longer be within arm's reach of New York. I don't know when I'll next be able to walk its streets, relish its anonymity, and savour the familiarity of all its sights, smells, and sounds. My ambition remains unfulfilled. Those were the reasons for my tears.

After that rather sappy introduction, I should explain how my feelings for New York are relevant to this postcard from planet Earth.

In July 2010 I had a week-long New York visit, primarily for the the Meteoritical Society's annual meeting. Before the conference started, however, I was spending some time with my friend (whose Harlem apartment I stayed in, and with whom many of my New York stories are entangled)—we'll refer to her as 'Mrs Cowboy' (I'm repaying the favour here after I was featured on her blog a while back)—in Brooklyn. As we sat on a park bench in Brooklyn Heights gazing over the East River to Manhattan our conversation meandered around. At one point, I posed the question as to why the Manhattan skyscrapers have a bimodal distribution. Both the Financial District downtown and the landscape of midtown are dominated by buildings reaching up for the heavens, but the architecture between them is distinctly challenged in the vertical dimension.

The twin peaks of downtown and midtown Manhattan. Credit: Jason Barr

Mrs Cowboy, a seasoned New Yorker, didn't have a particularly good answer and neither did I at the time. But I had a geologist's hunch that maybe it was something to do with the rocks that lie beneath. After all, those huge buildings must need some almighty foundations. Then one afternoon during the conference I participated in a lovely and informative tour of Central Park with a local geologist, Sidney Horenstein. I learnt all kinds of interesting facts about the city's geology, including an answer to my skyscraper question.

Many of Manhattan's bedrocks consist of original sediments (clays and muds) that underwent major mineralogical changes due to metamorphism. The actions of heat and pressure during the Taconic and Acadian orogenies (mountain-building episodes) changed the original sedimentary rocks to metamorphic rocks. This took place between about 400 and 500 million years ago, during the Devonian and Silurian geologic periods, and was part of the construction of the ancient supercontinent Pangaea. As Earth's tectonic plates shifted and jostled for position, the sedimentary strata were squeezed and squashed. The resulting metamorphic alteration created new rocks, including what is known as the Manhattan Schist. Today, these formations are not nice flat strata, but rather they have been folded to form a series of anticlines and synclines, or peaks and troughs.

A folded outcrop of the Manhattan schist (with a pegmatite intrusion) in Central Park.

One of these synclines dips down below the surface between the approximate city levels of Washington Square Park and Chambers Street, i.e., the gap between the midtown and downtown skyscrapers. This syncline was filled during the Pleistocene ice ages with much softer glacial sediments. So I had been correct with my geologist's hunch. New York's geology really does play a vital role in shaping the city's architecture. The ancient metamorphic bedrocks are sturdy and strong enough to support the huge skyscraper structures, but the younger and less consolidated glacial deposits just can't do the job.

A beautiful old illustration from A Geological History of Manhattan or New York Island by Issachar Cozzens. The geologic profile shown in the middle panel depicts some of the folded rock formations that make up the island of Manhattan.

I definitely believe that one of the most characteristic things about our Earth is its capacity to sustain complex and intelligent life. Great cities are amazing examples of the engineering feats that human civilization can achieve. So I can't think of of a better way to represent the human race, and Earth, to fellow sentient beings than with a piece of Manhattan's bedrock. For it is on these solid foundations that the (perhaps) greatest city of them all has been built.

The view from the Staten Island Ferry on Sunday. Midtown's Empire State building peaks through the urban canyons of downtown, just to the right of the Freedom Tower.

Journey from the centre of the Earth

One of the questions I am most frequently asked by non-planetary scientists is "How did the Moon form?". My answer invariably involves an explanation of what has become the most commonly accepted scenario and is known as the 'giant impact hypothesis'.

The early history of our solar system was pretty violent. The amount of dust, debris, and projectiles flying around the Sun would have made collisions and impacts a common occurrence. In the giant impact hypothesis scenario, it is thought that an almighty collision between an early-formed (or proto-) Earth and another Mars-sized body—known as Theia—took place approximately 4.5 billion years ago.

Artist's impression of the hypothesized Moon-forming giant impact event between the proto-Earth and a smaller body known as Theia. Credit: NASA

The immense amount of energy associated with this event would have been enough to blast apart the impacting Theia and to melt a significant amount of the proto-Earth. The remaining pieces of the obliterated Theia would have been hurled into space and subsequently re-coalesced to form our beloved Moon in orbit around Earth. Computer simulations of the giant impact are varied, but most suggest that Theia impacted Earth at an oblique angle. They also predict most of the material that accreted to form the Moon (more than three quarters) was derived from Theia. The rest of the Moon should therefore have been built from proto-Earth material.

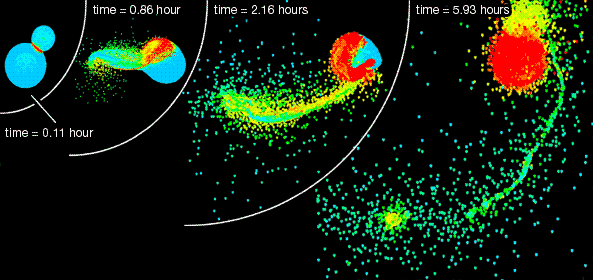

An example giant impact computer simulation. Within the first six hours after the collision, material is starting to form the Moon. Colours represent temperature; red regions would have been heated the most due to the energy of the impact and would have experienced the most melting. Credit: R. M. Canup 2004, Icarus

This hypothesis, at face value, is pretty simple to explain and easy to grasp. In any conversation with a non-specialist, however, I tend to leave out several of the problems that are associated with the scenario. And to understand at least one of those, we need to get a bit more technical and talk isotopes. Many of my previous postcards have referred, implicitly or explicitly, to isotopes and their usefulness in several aspects of geology. And I am sure they will continue to crop up, so I thought this was a good a chance as any to actually explain what they are.

We can start with a dictionary definition:

forms of the same element that contain equal numbers of protons, but different numbers of neutrons in their nuclei and hence differ in relative atomic mass, but not in chemical properties

We can also illustrate this with some helpful cartoons. In this case we will focus on oxygen isotopes because they are relevant to this postcard. The most common naturally occurring oxygen isotope—oxygen-16, or ¹⁶O—constitutes more than 99% of any given quantity of oxygen. It is known as ¹⁶O because it has 16 particles in its nucleus: eight protons (positively charged particles) and eight neutrons (particles with no charge).

Cartoon of an oxygen-16 atom. There are eight protons (red) and eight neutrons (green) in the nucleus, which is surrounded by eight orbiting electrons (blue).

The two remaining isotopes are ¹⁷O and ¹⁸O, which contain an extra one and two neutrons in their nuclei, respectively. All isotopes of a single element have the same number electrons and they therefore exhibit the same chemical characteristics. It is only the mass of the isotopes that changes, due to the variable number of neutrons.

Cartoons of oxygen-17 (left) and oxygen-18 (right) isotopes (note the additional neutrons).

So after that chemistry lesson we can get back to the story...

Based on measurements of rocks from the Earth, Mars, and several asteroids, scientists have long thought that the isotopic signatures (e.g., the relative amounts of the three oxygen isotopes) of planetary bodies within the early solar system were variable. They therefore expect Theia and the proto-Earth to have contained different proportions of ¹⁶O, ¹⁷O, and ¹⁸O. If that were indeed the case, and because the majority of Theia ended up in today's Moon, the relative amounts of the three oxygen isotopes that we measure today in lunar and terrestrial rocks should be different. But up until now such differences have not been detected.

In a new study led by Daniel Herwatz at the University of Göttingen, however, small differences between the oxygen (and titanium) isotope abundances in rocks from the Earth and the Moon have now been found. The authors claim that their precise measurement results are therefore evidence to support the giant impact hypothesis.

I don't want to focus here on the details, issues, or implications of their work, but rather on the type of rocks from Earth that they chose to analyse. Herwartz and coauthors compared the composition of basalts from three of the Apollo landing sites with rocks that they decided best represented Earth (sound familiar?). Or at least the most primitive, unaltered part of the Earth. And for this they chose rocks known as mantle xenoliths.

These xenoliths are pieces of Earth's otherwise inaccessible mantle (the region between the crust and core). They are most commonly rocks known as peridotites, which are made up almost entirely of the ultramafic minerals (silicates that have high abundances of magnesium and iron) olivine and/or pyroxene. Xenoliths are brought to the Earth's surface when they are encapsulated and entrained inside other rocks, which crystallize from magmas that originated in the (upper) mantle. Kimberlites—common diamond-bearing rocks—are an example of this geological transportation system. They made the journey from the (almost) centre of the Earth and often contain several samples of this precious mantle cargo.

My very own little piece of the mantle, a pretty green peridotite.

Mantle xenoliths are probably the most valuable samples we have for understanding the fundamental composition of the Earth. If they have journeyed this far already, I propose that at least one makes the next leg towards the stars and represents the whole Earth to those alien planetary geologists.
